Engineered for Pressure. Built with Strength.

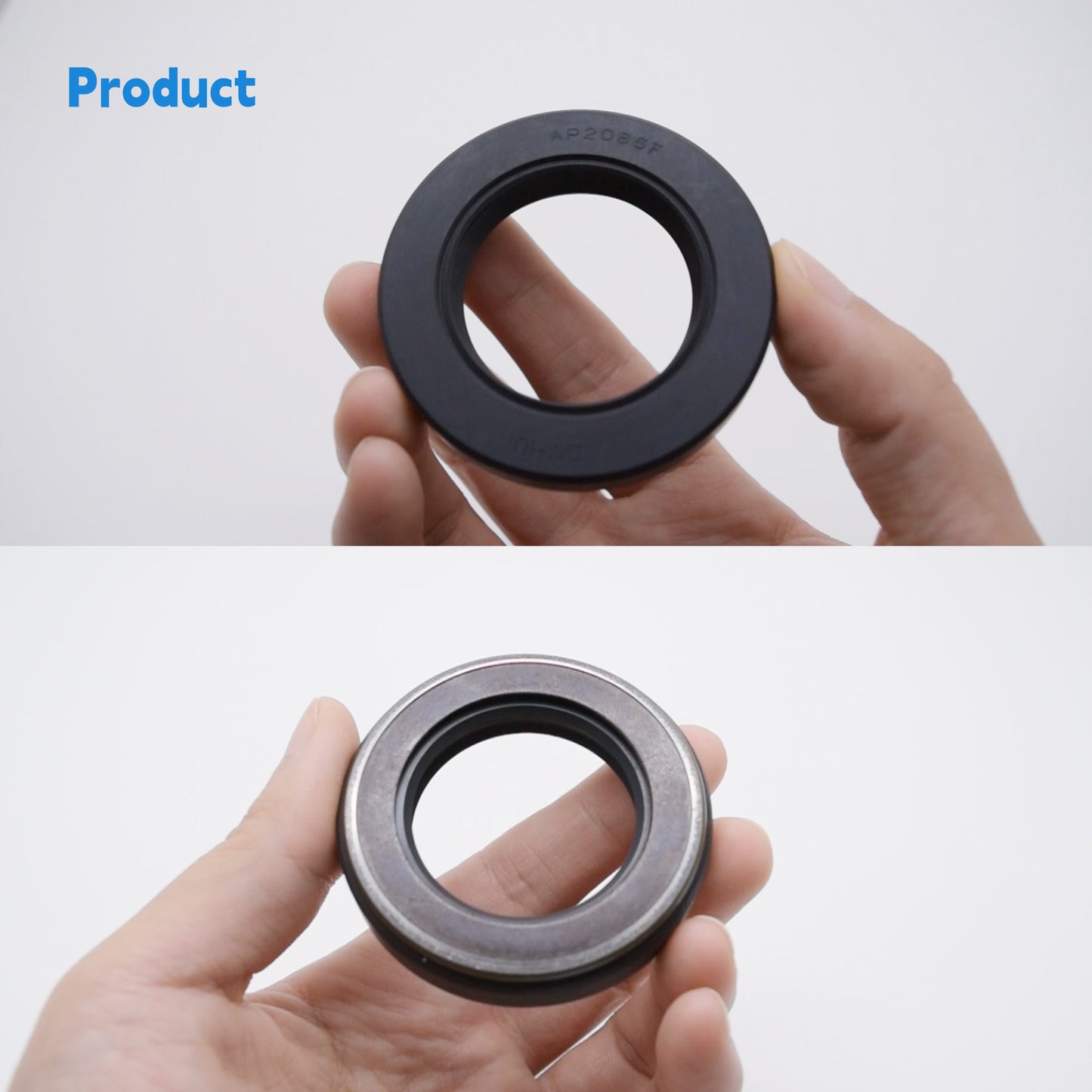

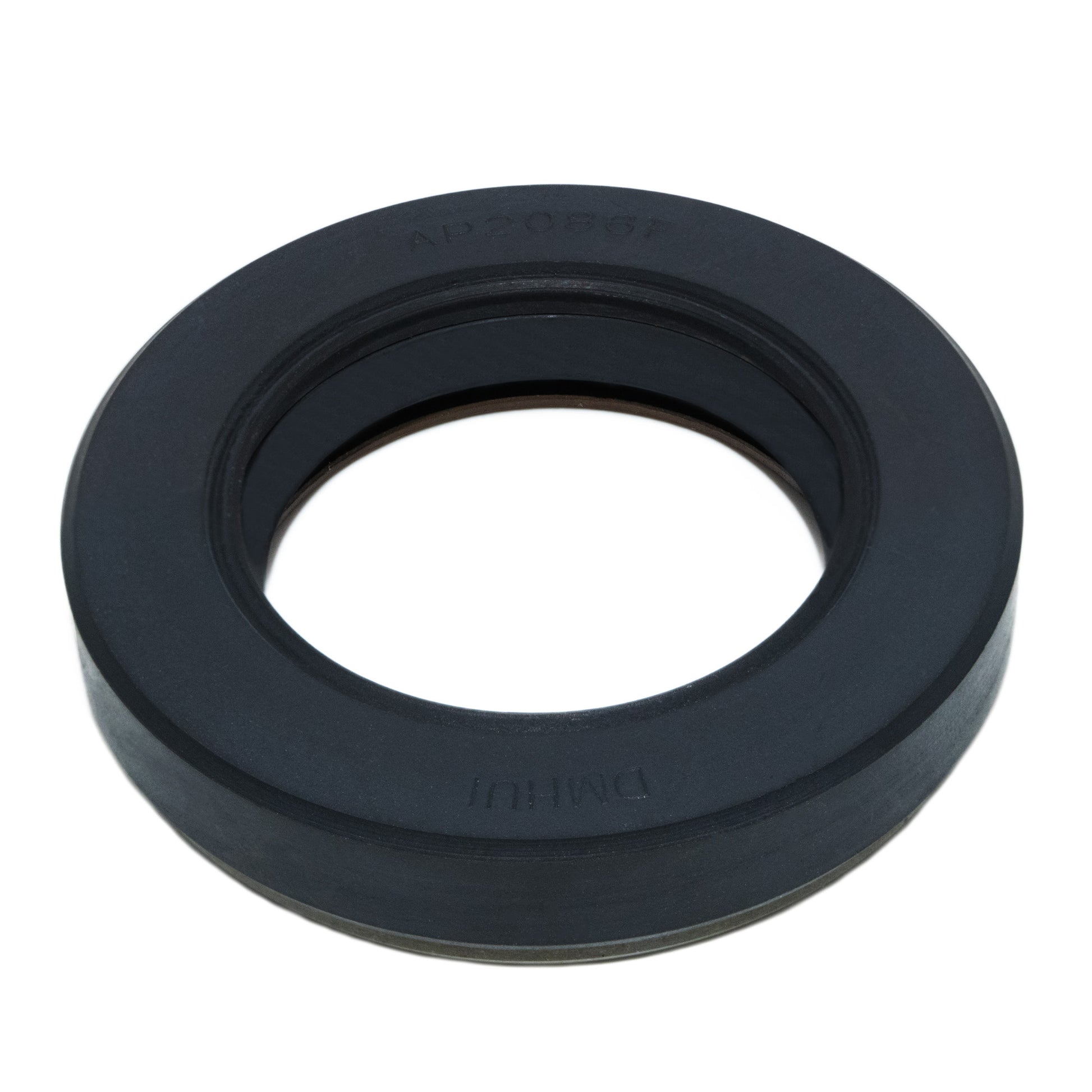

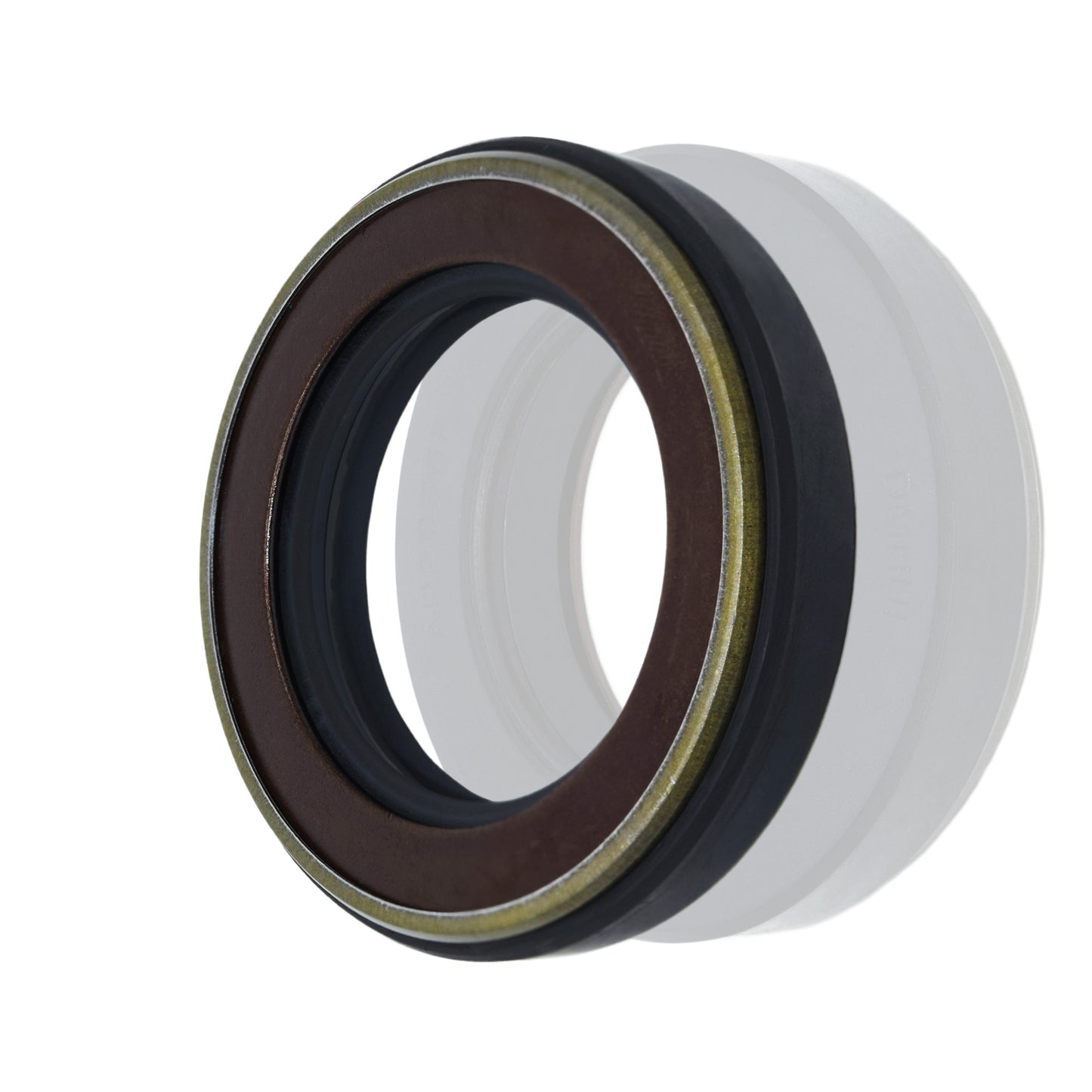

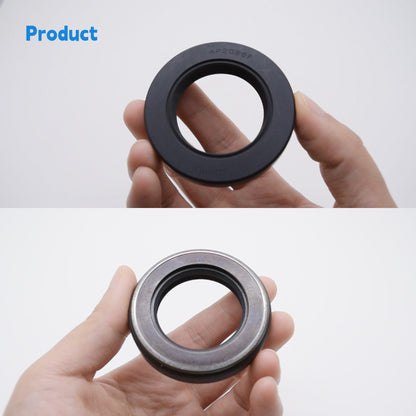

The DMHUI TCN Type Oil Seal is a heavy-duty solution crafted for challenging hydraulic applications. Featuring a reinforced triple-metal skeleton and a NBR rubber sealing element, it delivers dependable, long-term leak prevention for your equipment’s rotating shafts, effectively supporting extended service life in pumps, motors, and machinery.

Key Points

Withstands System Pressure
Designed with a robust TCN (triple metal skeleton) structure, this seal resists deformation under high pressure, maintaining a secure barrier against leaks in demanding hydraulic environments.

Reliable Material Performance
Constructed from quality Nitrile Rubber (NBR), the sealing lip offers strong resistance to common hydraulic oils and lubricants, ensuring lasting flexibility and sealing integrity.

Precision Metric Sizing
Manufactured to exact 35x55x12mm dimensions for a guaranteed fit on your 35mm shaft and within the 55mm housing bore, providing immediate and effective sealing performance.

Assured Manufacturing Quality
Produced under an ISO9001 certified quality management system, ensuring consistent standards in every seal for reliable performance you can count on.

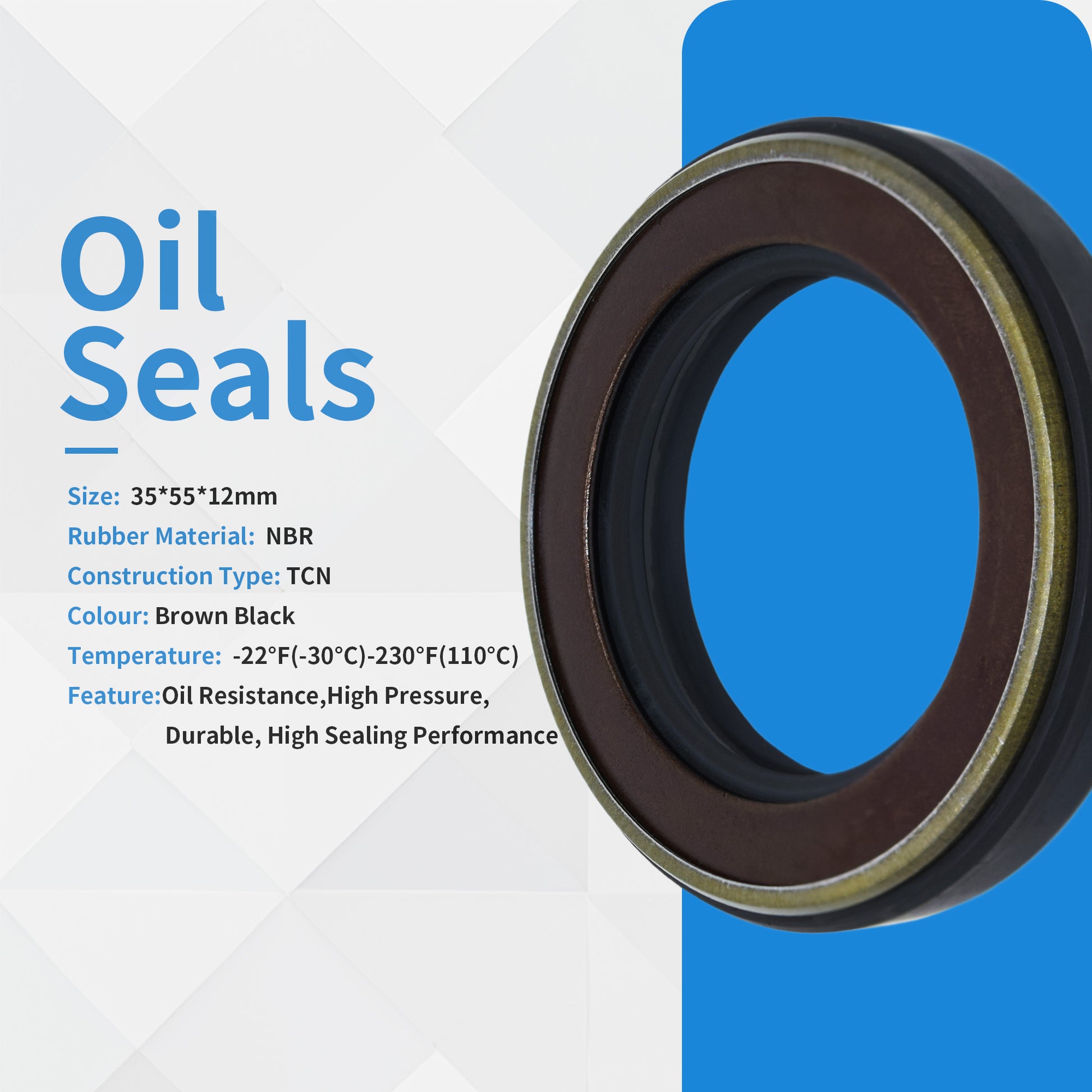

Product Info

Product Type: Rotary Shaft TCN Type Seal

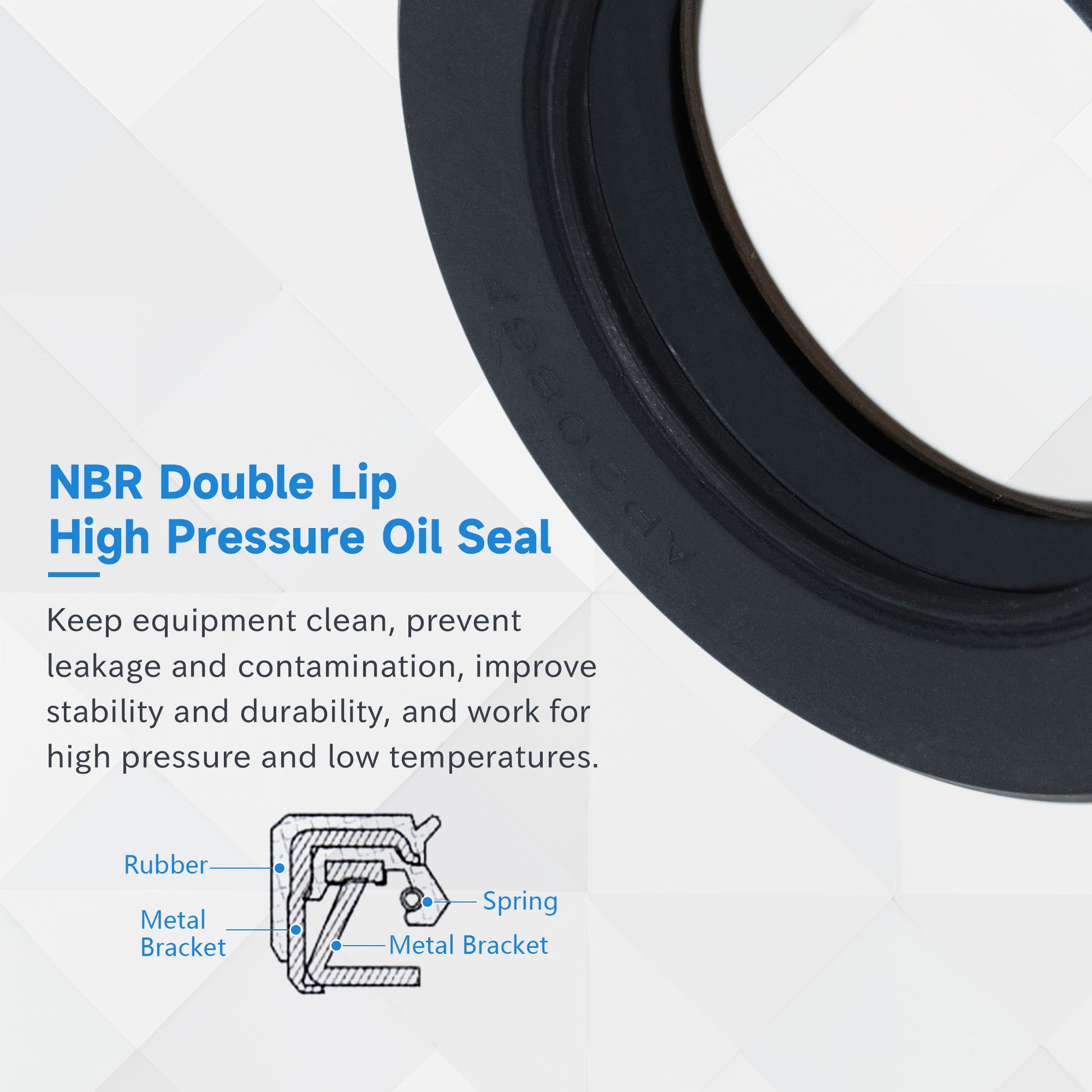

Material: NBR Rubber Sealing Lip / Triple Metal Skeleton / Garter Spring

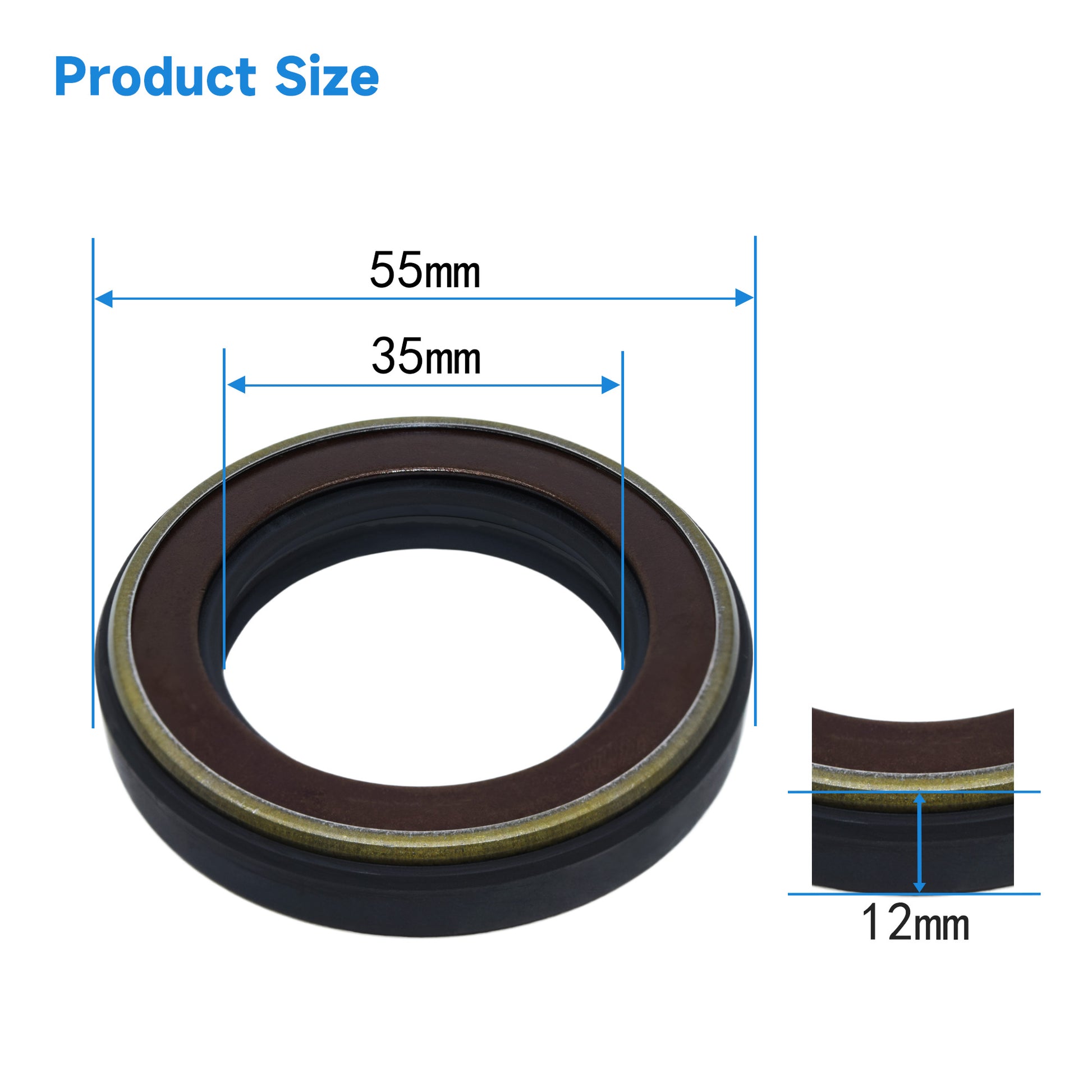

Metric Dimensions: 35mm (Shaft) x 55mm (Bore) x 12mm (Width)
OEM Part Number: AP2086F
Fluid Compatibility: Hydraulic Oils, Lubricating Oils, Greases
The DMHUI Difference: Sealing Reliability
Package Includes: 1x TCN Type Oil Seal (AP2086F, 35x55x12mm)

In industrial and mobile equipment, a failed seal can lead to downtime and cost. DMHUI focuses on durable sealing solutions. Our TCN seal incorporates a reinforced design for sustained performance:

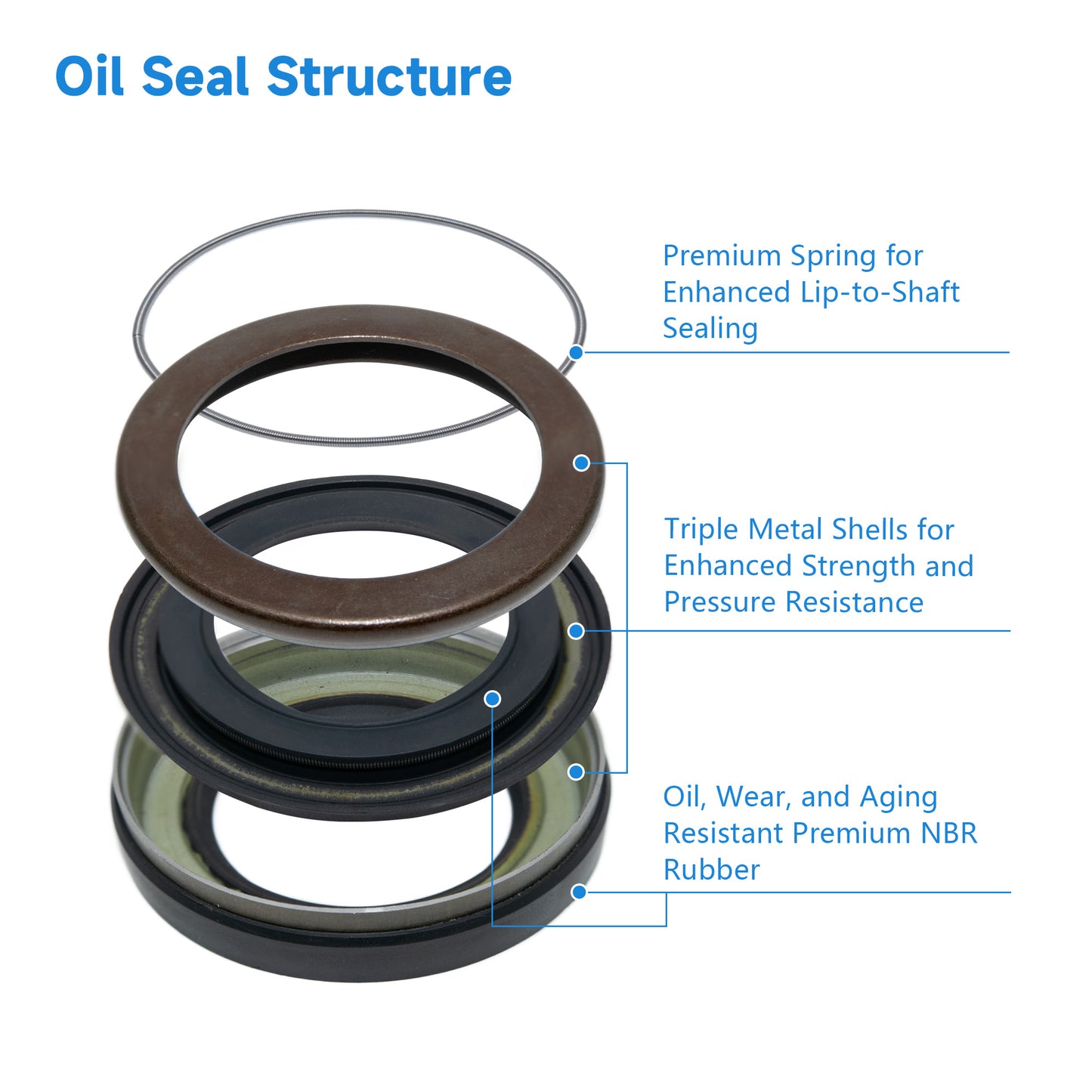

Triple-Metal Skeleton: Provides exceptional radial stability and installation strength, preventing case distortion and ensuring a secure housing fit.

NBR Sealing Lip: Delivers excellent wear resistance and maintains effective sealing across a range of operating temperatures encountered in hydraulic systems.

Spring-Loaded Design: The garter spring applies a consistent radial force to the lip, promoting positive sealing contact and compensating for minor wear over time.

Ideal For Use In:
Hydraulic Components: Various gear pumps, piston pumps, vane pumps, and hydraulic motors.
Construction Equipment: Sealing applications in excavators, loaders, and other machinery hydraulic systems.
Industrial Machinery: Rotary shaft seals in gearboxes, drivetrains, and other industrial equipment requiring fluid retention.

FAQ

Q: Is this seal appropriate for a high-pressure hydraulic pump?
A: Yes. The TCN design with its triple-metal reinforcement is specifically engineered to handle the elevated pressures found in many hydraulic pump and motor applications, offering enhanced stability compared to standard single-case seals.

Q: How do I confirm this is the right size for my machine?
A: Accurately measure your existing seal or housing: the shaft diameter must be 35mm, the housing bore must be 55mm, and the cavity width must accommodate the 12mm seal. Matching the OEM number AP2086F is also a reliable method.

Q: What is your quality assurance?
A: We are a factory-direct source, and our manufacturing processes adhere to ISO9001 standards. This commitment to a certified quality management system ensures the reliability and consistency of every product.

Q: How do I install it without damaging it?
A: Use a flat installation tool or a suitably sized socket. Apply even pressure around the outer metal case—never hammer directly on the rubber lip or the seal's face. Lubricating the rubber lip and the shaft with a little lubricating oil before installation is recommended.

Q: Do you sell other sizes?
A: We carry a wide range of metric and standard oil seal sizes. If you need a different size or type, please use the search function on our website or contact our support team for assistance.

Note: This product is intended as a replacement component. Verify all dimensions and application suitability prior to purchase. While designed to OEM specifications, this is an aftermarket part.

Trust the Seal. Choose DMHUI.
Equip your machinery with a component designed for endurance. Order the DMHUI AP2086F TCN Oil Seal for a direct-fit, high-performance sealing solution.
