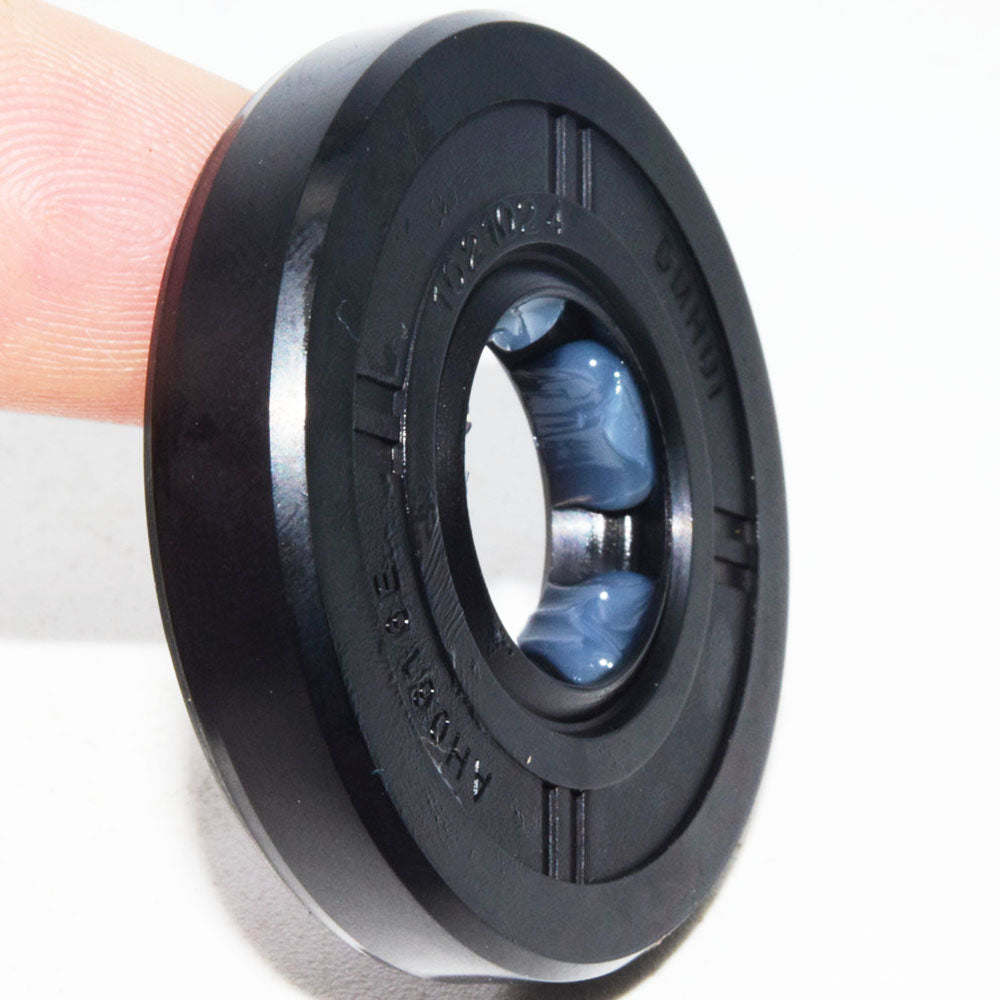

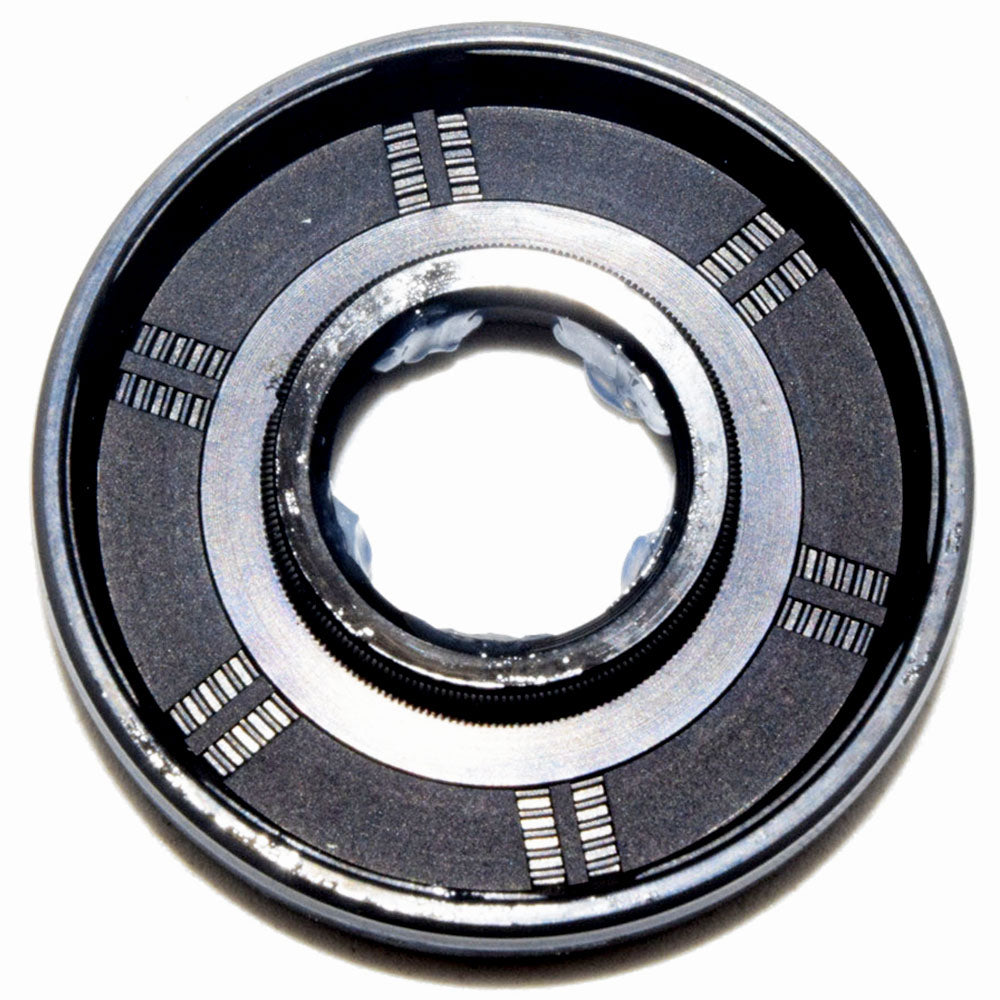

Compact Precision Sealing for Servo Motor Systems

The DMHUI AH0616E HTC Oil Seal (15×37×7mm) is designed for small-size servo motor assemblies and precision automation equipment. Featuring a double-lip HTC structure, it helps maintain internal lubrication while providing protection against dust and external contaminants.

Its compact dimensions make it ideal for tightly integrated systems where space is limited and sealing accuracy is critical.

Key Points

HTC Double Lip Design
Equipped with a primary sealing lip and a secondary dust lip, supporting both oil retention and contamination control.

Optimized for Compact Servo Systems
Designed for small-diameter shafts (15mm) commonly found in precision servo motors and automation components.

Dust-Resistant Performance
Helps reduce the entry of fine particles, supporting stable operation in sensitive environments.

Durable NBR Material
Made from nitrile rubber for reliable resistance to oils and lubricants while maintaining flexibility.

Precision 15×37×7mm Fit
Manufactured to exact dimensions for secure installation in compact housings.

Product Info

Product Name: Automated Robotic Arms Oil Seal AH0616E
OEM Part Number: AH0616E
Seal Type: HTC (Double Lip)
Material: Nitrile Rubber (NBR)
Dimensions:
Shaft (ID): 15mm
Bore (OD): 37mm
Width: 7mm
Primary Application: FANUC Servo Motor systems
Package Includes: 1 x HTC Double Lip Oil Seal (OEM # AH0616E, Size 15mm x 37mm x 7mm)

Compact servo systems require sealing components that balance size, flexibility, and reliability. DMHUI HTC seals are built to meet these demands.

Dual-Lip Sealing Structure
Maintains lubrication while adding protection against dust intrusion.

Flexible Sealing Edge
Ensures consistent shaft contact during high-speed rotation.

Compact Structural Design
Optimized for small housings where installation space is limited.

Ideal For Use In
Servo Motors:
FANUC systems and compact servo assemblies
Automation Equipment:
Robotics, CNC machines, and precision control systems
Industrial Applications:
Small rotating components requiring both oil sealing and dust protection

FAQ

Q: Is this an original FANUC part?
A: No, this is a high-quality aftermarket replacement manufactured by DMHUI to match OEM AH0616E specifications for fit, material, and performance.

Q: Can I use a single-lip SC seal instead of this HTC double-lip seal?
A: While a single-lip seal of the same dimensions might physically fit, it would lack the dust lip, leaving your servo motor vulnerable to contamination. If your original seal is AH0616E (HTC), replace it with the same type to maintain proper contamination protection.

Q: How do I install this small seal correctly?
A: Clean the shaft and housing bore thoroughly. Apply a thin film of clean grease to the seal lip. Use a flat installation tool or a socket that matches the outer diameter (37mm). Press the seal squarely into the housing bore, applying even pressure to the outer metal case only. The double-lip side (with the dust lip visible) must face outward toward the external environment. Due to the small size, avoid using excessive force.

Q: What fluids is this seal compatible with?
A: The NBR material is compatible with most mineral-based greases and lubricating oils used in FANUC servo motors and robotic gearboxes. Avoid use with brake fluids, phosphate esters, or high-temperature synthetic oils without confirming compatibility.

Q: Do you offer other small-size seals for FANUC servo motors?
A: Yes. We stock a range of seals for FANUC systems in various sizes, including AH0616E, BH6656E, BE3554E, and others. Search our store by OEM part number or motor model.

Note: This product is an aftermarket replacement component. Always verify the OEM part number and dimensions from your original seal or equipment manual prior to purchase. The 7mm width is critical — measure your housing cavity depth carefully. Proper installation is essential for optimal sealing performance in compact servo motor applications.

Trust in quality, choose DMHUI
DMHUI HTC oil seals provide dependable performance for precision servo systems where space, accuracy, and stability are essential.
