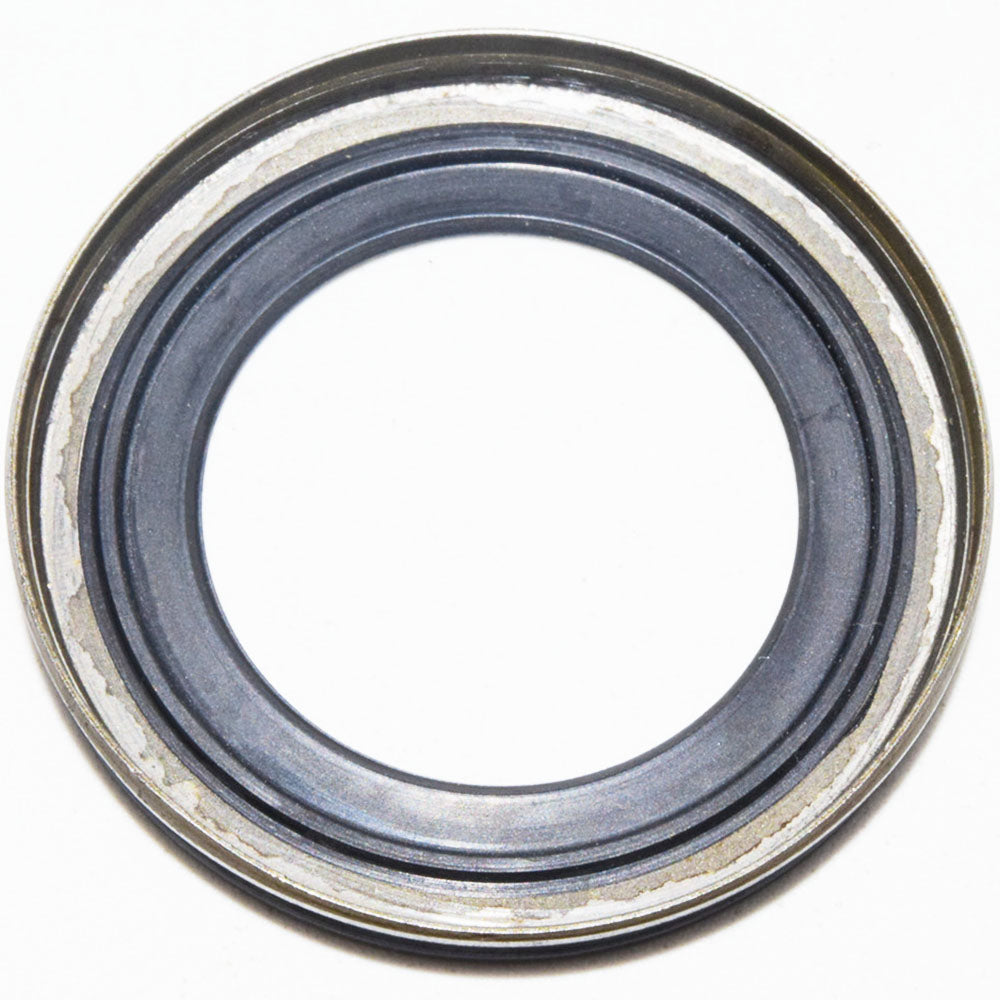

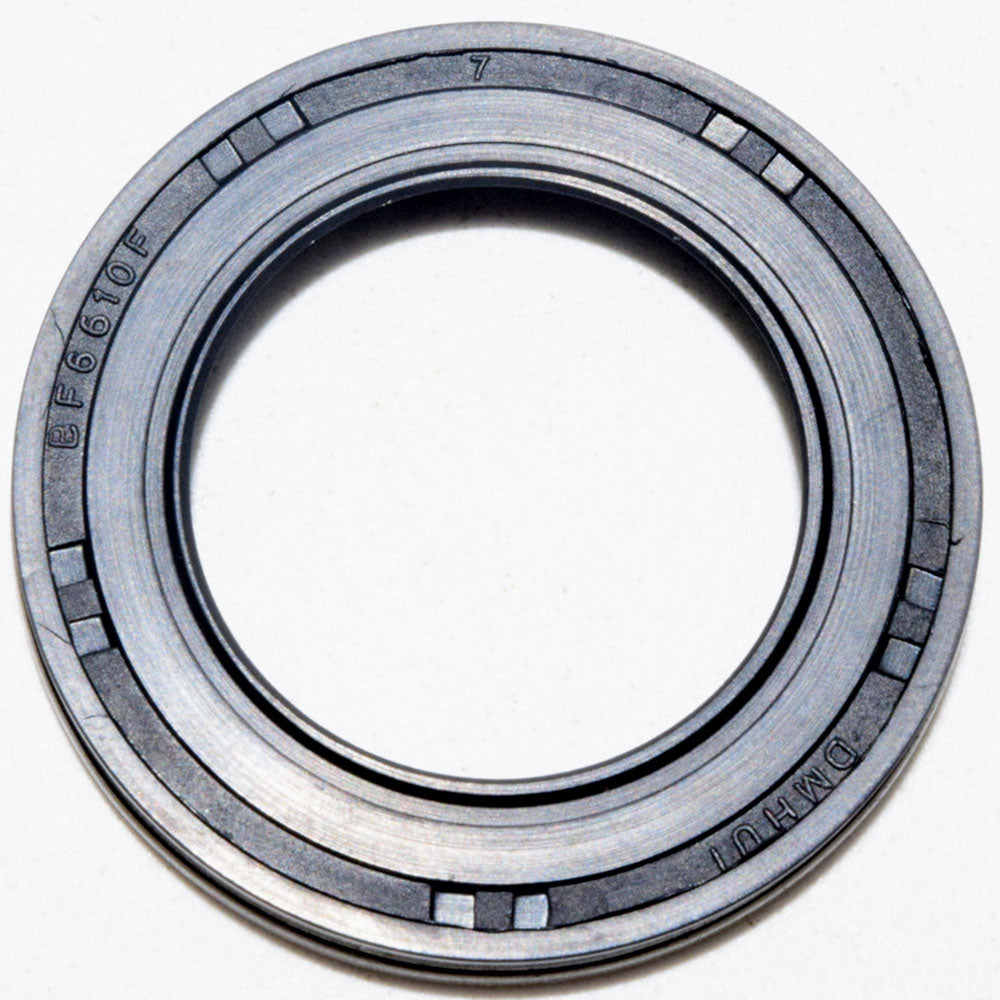

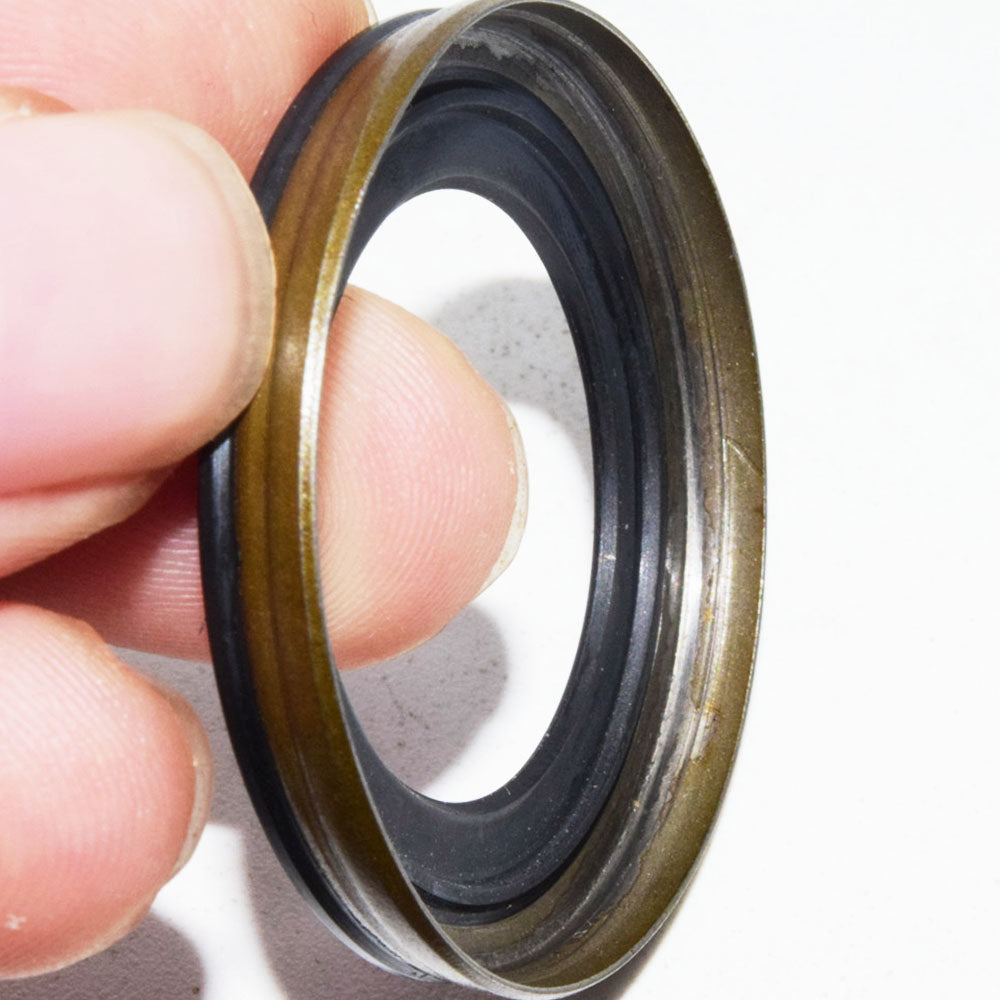

Compact Dust Protection for Precision Servo Systems

The DMHUI BF6610F VBY Oil Seal (24×37×5mm) is designed for compact servo motor assemblies where space is limited and cleanliness is critical. Featuring a VBY dust-lip structure, it helps reduce the entry of external particles while maintaining stable sealing performance.

Its low-profile 5mm width makes it ideal for tightly integrated systems, ensuring efficient operation without adding unnecessary space or friction.

Key Points

VBY Dust Lip Structure
Designed with a dedicated dust lip to help block contaminants, supporting cleaner internal operation.

Ultra-Compact Design
With a slim 5mm width, this seal is suitable for applications with strict space constraints.

Optimized for Servo Motor Systems
Designed for FANUC servo motors and precision automation equipment.

Durable NBR Rubber Material
Provides reliable resistance to oils and lubricants while maintaining flexibility during operation.

Precision 24×37×5mm Fit
Manufactured to exact dimensions for proper installation and consistent sealing.

Product Info

Product Name: Automated Robotic Arms Oil Seal BF6610F
OEM Part Number: BF6610F
Seal Type: VBY (Dust Lip Design)
Material: Nitrile Rubber (NBR)
Dimensions:
Shaft (ID): 24mm
Bore (OD): 37mm
Width: 5mm
Primary Application: FANUC Servo Motor systems
Package Includes: 1 x VBY Ultra-Thin Dust Lip Oil Seal (OEM # BF6610F, Size 24mm x 37mm x 5mm)

In small-scale servo systems, sealing components must deliver performance without occupying extra space. DMHUI VBY seals are built for this balance.

Dust-Focused Protection
Helps reduce the entry of fine particles into sensitive components.

Flexible Sealing Edge
Maintains stable contact with the shaft during high-speed rotation.

Low-Profile Structure
Ideal for compact housings and precision assemblies.

Ideal For Use In
Servo Motors:
FANUC systems and compact servo assemblies
Automation Equipment:
Robotics, CNC machines, and precision control systems
Industrial Applications:
Small rotating components requiring dust protection and stable sealing

FAQ

Q: Why is this seal only 5mm wide? Is that a standard size?
A: 5mm is an unusually thin profile for an oil seal, but it is a specific requirement for certain FANUC servo motor housings with shallow cavities. Standard seals are typically 7mm or thicker. The BF6610F is engineered precisely for these space-constrained applications. Always verify your cavity depth — a 5mm seal cannot be replaced with a thicker seal.

Q: What is the difference between VBY and standard TCY seals?
A: VBY typically emphasizes dust exclusion with a more aggressive dust lip geometry. Standard TCY has a balanced primary and secondary lip. The VBY design is often chosen for applications where contamination is the primary concern, while the ultra-thin 5mm profile of the BF6610F is a specific housing requirement.

Q: Can I use a 7mm wide seal if I cannot find a 5mm replacement?
A: No. A 7mm seal is 2mm thicker than the 5mm cavity depth. Attempting to force a thicker seal will damage the housing, prevent proper seating, and likely cause immediate sealing failure or motor damage. Always use the exact width specified.

Q: How do I install this ultra-thin seal correctly?
A: Extreme care is required due to the thin profile. Clean the shaft and housing bore thoroughly. Apply a thin film of clean grease to the seal lip. Use a flat installation tool or a socket that exactly matches the 37mm outer diameter. Apply even, gentle pressure to the outer metal case only — never strike the rubber lip. The VBY dust lip side must face outward. The thin casing is more prone to distortion than thicker seals.

Q: What fluids is this seal compatible with?
A: The NBR material is compatible with most mineral-based greases and lubricating oils used in FANUC servo motors and robotic gearboxes. Avoid use with brake fluids, phosphate esters, or aggressive synthetic oils without confirming compatibility.

Note: This product is an aftermarket replacement component. Always verify the OEM part number and dimensions from your original seal or equipment manual prior to purchase. The 5mm width is critical — do not substitute with thicker seals. Due to the ultra-thin profile, careful installation is essential to prevent casing distortion. For best results, use a proper installation tool matched to the 37mm outer diameter.

Trust in quality, choose DMHUI
DMHUI VBY oil seals provide an effective solution for precision systems where space is limited and contamination control is essential.
