Enhanced Sealing for Demanding Servo Motor Systems

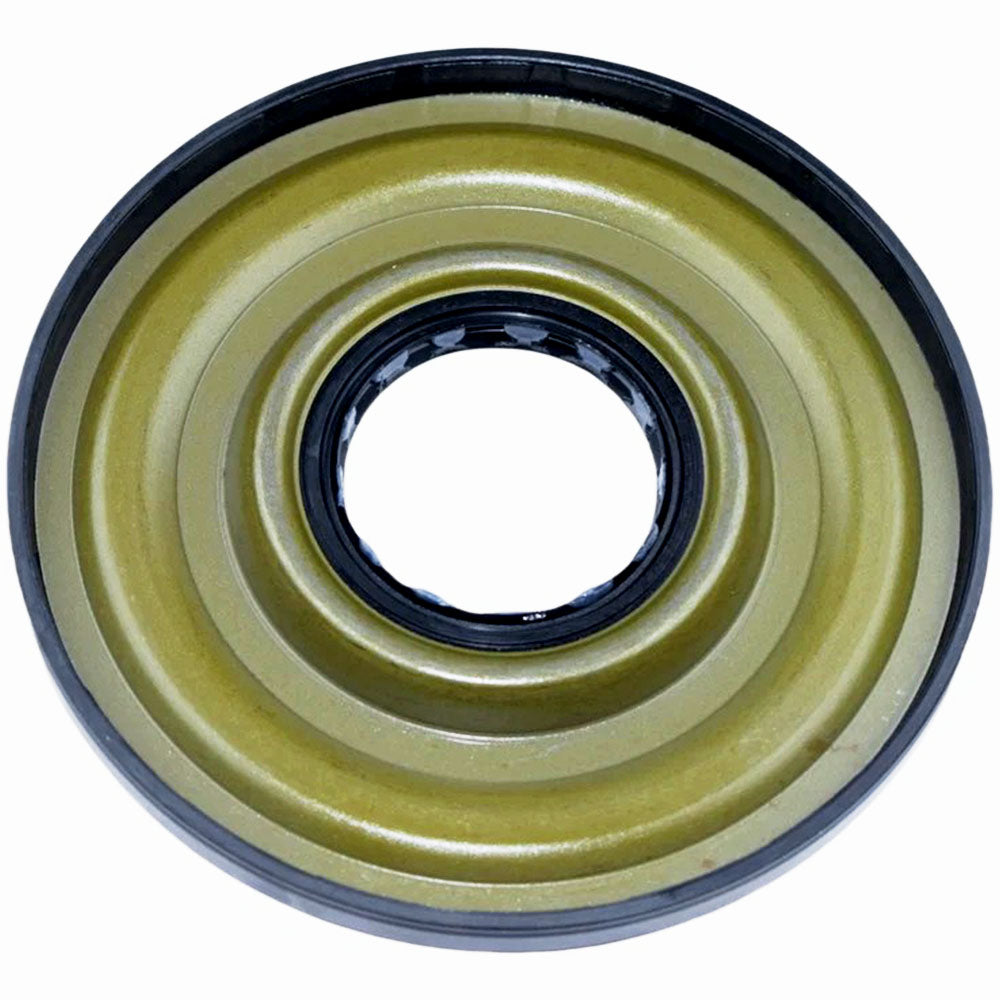

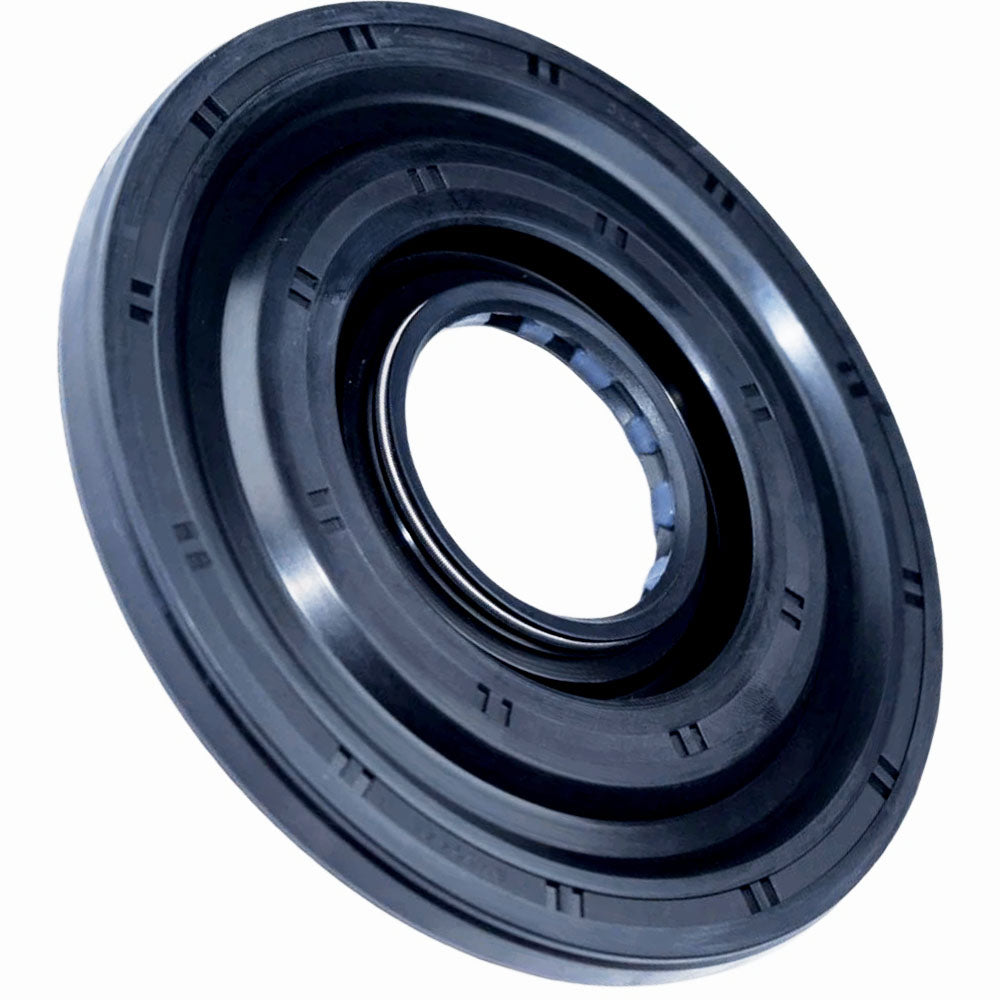

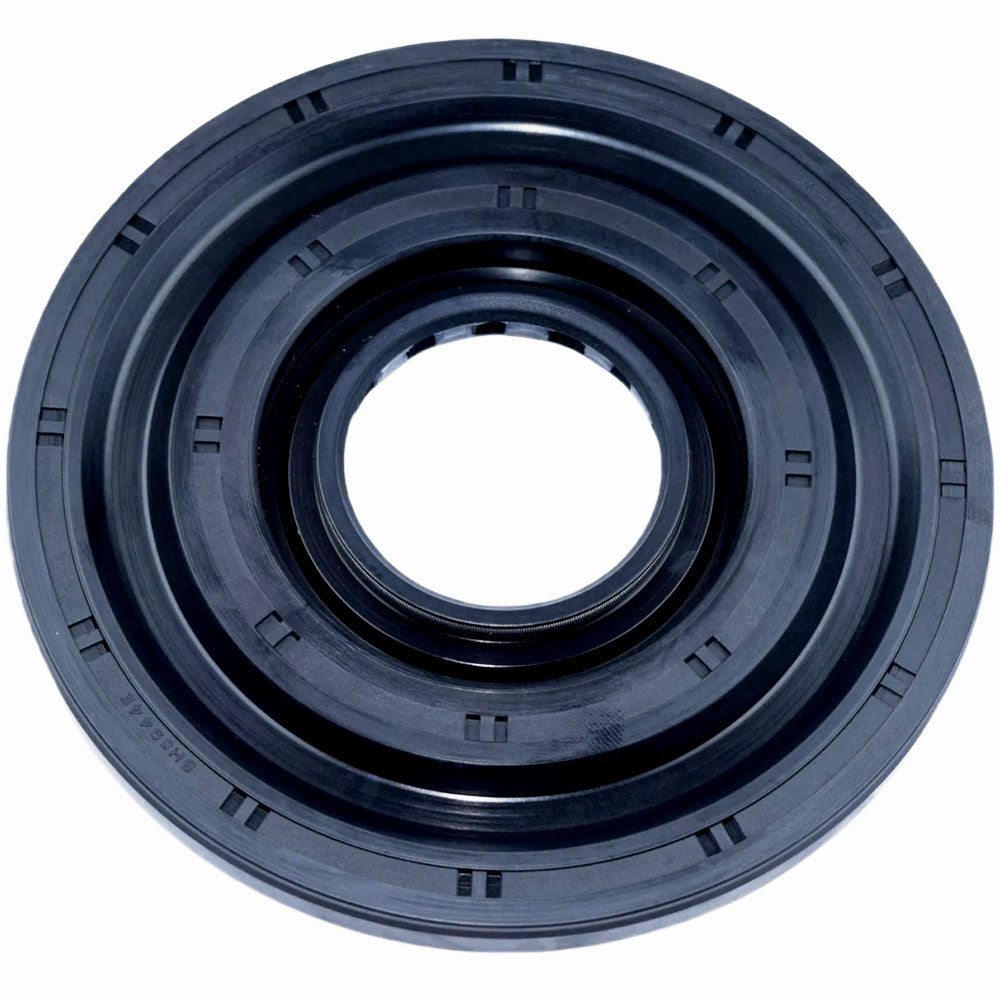

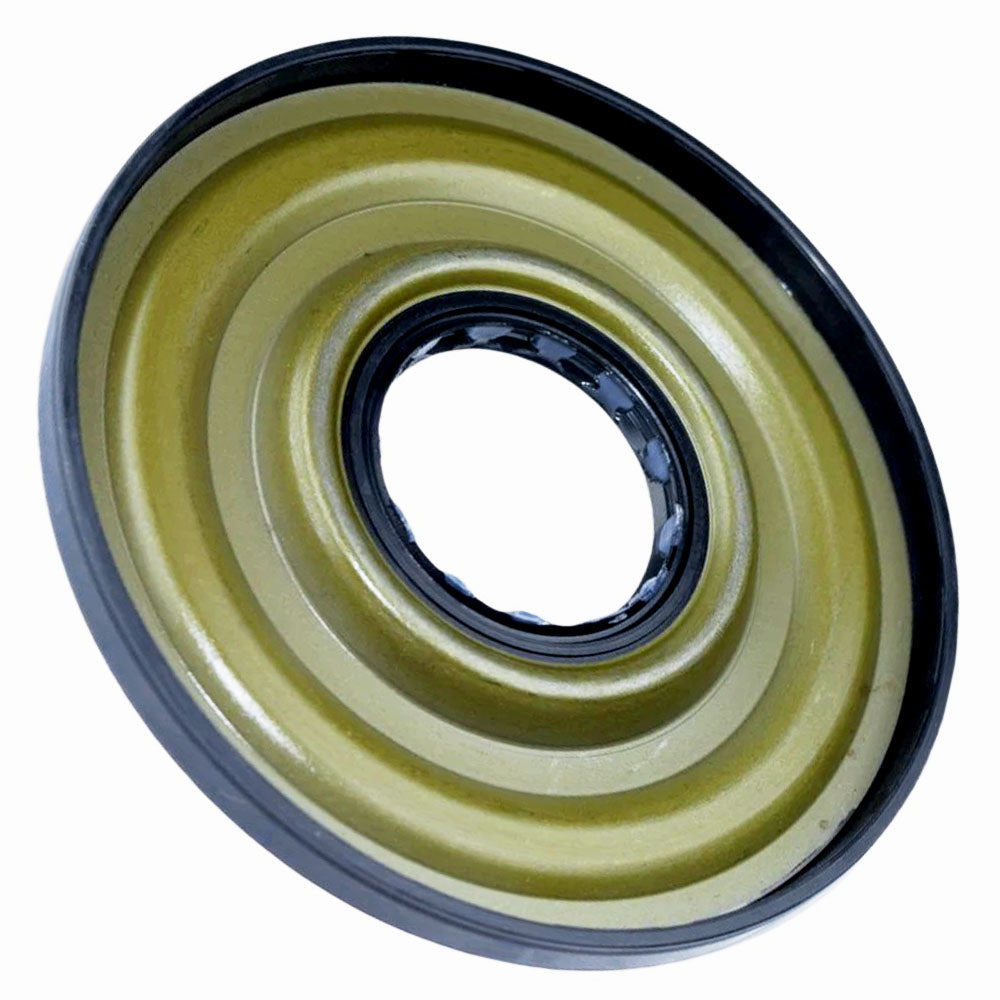

The DMHUI BH5944E HTCY Oil Seal (35×106×8mm) is engineered for precision servo motor applications where both oil retention and contamination protection are essential. Featuring a double-lip HTCY structure, this seal helps maintain internal lubrication while reducing the entry of dust and external particles.

With an increased 8mm width, it provides improved structural stability, making it suitable for larger servo motor assemblies and high-duty applications.

Key Points

HTCY Double Lip Protection
Combines a primary sealing lip with a secondary dust lip to support both oil retention and external contamination control.

Improved Width for Stability
The 8mm thickness enhances rigidity and sealing consistency, especially in larger or higher-load servo systems.

Designed for Servo Motor Applications
Compatible with FANUC servo motor systems and precision automation equipment.

Durable NBR Rubber Material
Offers reliable resistance to oils and lubricants while maintaining flexibility during continuous operation.

Precision 35×106×8mm Fit
Manufactured to accurate dimensions for proper installation and stable performance.

Product Info

Product Name: Automated Robotic Arms Oil Seal
OEM Part Number: BH5944E
Seal Type: HTCY (Double Lip with Dust Protection)
Material: Nitrile Rubber (NBR)
Dimensions:
Shaft (ID): 35mm
Bore (OD): 106mm
Width: 8mm
Primary Application: FANUC Servo Motor systems
Package Includes: 1 x HTCY Double Lip Oil Seal (OEM # BH5944E, Size 35mm x 106mm x 8mm)

Servo systems often operate in environments where both lubrication control and contamination prevention are critical. DMHUI HTCY seals are designed to meet these dual requirements.

Dual-Lip Sealing System
Helps maintain internal lubrication while limiting the entry of dust and debris.

Flexible NBR Sealing Edge
Maintains consistent shaft contact, supporting long-term sealing performance.

Reinforced Structural Design
The increased width contributes to improved stability and durability during operation.

Ideal For Use In
Servo Motors:
FANUC systems and large-frame servo assemblies
Robotic & Automation Equipment:
Industrial robotic arms, CNC systems, automated production lines
Industrial Machinery:
Applications requiring both oil sealing and dust protection

FAQ

Q: What is the difference between HTCY and standard TCY?
A: HTCY indicates a heavy-duty version of the TCY double-lip design. It typically features a reinforced lip profile and a stronger metal casing, providing better resistance to vibration, temperature changes, and moderate contamination. For FANUC servo motors in robotic arms, HTCY is often specified for added durability.

Q: Is this seal compatible with my FANUC servo motor or robotic arm?
A: Yes, the BH5944E seal is designed as a direct replacement for specific FANUC servo motor systems that call for a 35x106x8mm HTCY-type seal. Check your original seal part number or measure your shaft (35mm), housing bore (106mm), and cavity width (8mm) to confirm.

Q: How do I install this seal correctly?
A: Clean the shaft and housing bore thoroughly. Apply a thin film of clean grease to the seal lip. Use a flat installation tool or a large-diameter socket that contacts the outer metal case evenly. Press the seal squarely into the housing

Q: What fluids is this seal compatible with?
A: The NBR material is compatible with most mineral-based greases and lubricating oils used in FANUC servo motors and robotic gearboxes. Avoid use with brake fluids, phosphate esters, or high-temperature synthetic oils unless compatibility is confirmed.

Q: Do you offer other seals for FANUC servo motors and robotic arms?
A: Yes. We stock a range of seals for FANUC systems, including BC3554E, BE3554E, BC3555E, BH6656E, BE6656F, and others. Search our store by OEM part number or motor model.

Note: This product is an aftermarket replacement component. Always verify the OEM part number and dimensions from your original seal or equipment manual prior to purchase. The 8mm width is critical — do not substitute with 7mm seals. Proper installation is essential for optimal sealing performance in servo motor and robotic arm applications.

Trust in quality, choose DMHUI
DMHUI HTCY oil seals provide a balanced solution for servo motor systems, combining reliable lubrication sealing with added protection against environmental contaminants.
